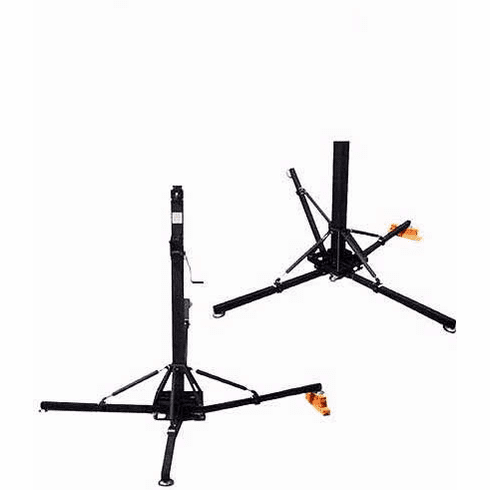

XL-16 Mobile Crank-up Lift

L-16 Mobile FEATURES:

All Four Legs Are Fully Adjustable

Adapts To The Most Uneven Ground

One Man, Two Minute Setup

Eighteen Separate Locking Positions

Heavy Duty Self Braking Winch

16' Maximum Lift Height

Adjustable Heavy Duty Leveling Pads

2" Square Top Tube with .188" Wall

4" Square Base Tube

Aluminum Construction

Wheel Base

Large Foot Base

L-16 Mobile Weight Loading Information:

Maximum Weight Rating: 500 lbs. At Any Height

Weight Loading Certified By Structural Engineering Firm

L-16 Mobile Ordering Info:

Folded Dimensions: 16" x 18" x 81"

Weight: 135 lbs.

Footprint: 84"

Part Number: 1-16-001

L-16 Mobile Available Accessories:

Triangle Truss Adapters

Box Truss Adapters

Club Truss Adapters

Speaker Adapters

Double Frame

T-Bar
