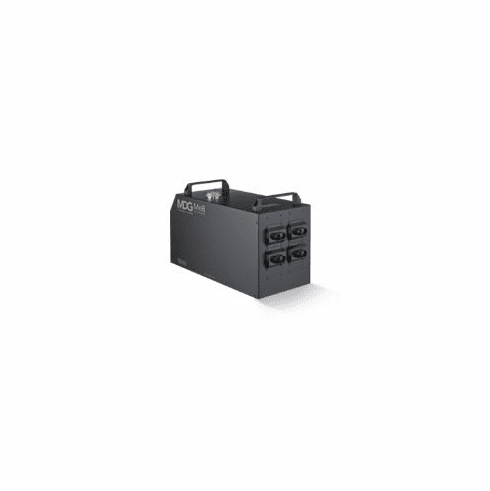

MDG Me8 Octo High Output Fog Generator
MDG Me8 Octo High Output Fog Generator
FEATURES:
Octo fog output: With its eight nozzles, the maximum fog output is 800 m3 (28,252 ft3) per minute.
Variable fog output: 0-100% fog output control from your DMX/RDM device, or direct local control.
Fluid consumption: At maximum output (2.76 bar / 40 psi) Me8 uses only 8 L (2.11 US gallon) of fluid per hour.
100% duty cycle: At all output levels Me8 produces a high-quality, consistent fog as long as there is fluid and gas.
Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
Automatic Purging System™ (APS™): This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.
SPECIFICATIONS:
Maximum fog output: 800 m3 (28,251 ft3) per minute
Fluid consumption: 8 L (240 oz / 2.08 US gallon) per hour at 2.76 bar / 40 psi
Gas type: N2
Gas consumption: 8 kg (17.6 lb) per hour at 2.76 bar / 40 psi
Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
Reservoir capacity: 9.5 L (2.51 gallon US)
