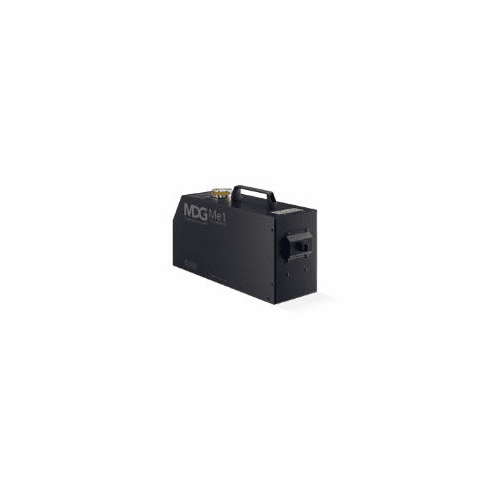

MDG Me1 Single High Output Fog Generator
MDG Me1 Single High Output Fog Generator
FEATURES:
Single fog output: With its single nozzle, the maximum fog output is 100 m3 (3,531 ft3) per minute
Variable fog output: 0-100% fog output control from your DMX/RDM device, or direct local control.
Second personality: MAX 3000 APS configuration setting.
Fluid consumption: At maximum output (2.76 bar / 40 psi) Me1 uses only 1 L (0.26 US gallon) of fluid per hour.
Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
100% duty cycle: At all output levels Me1 produces a high-quality, consistent fog as long as there is fluid and gas.
Automatic Purging System™ (APS™): This system purges the heating module after the first heating cycle and after every emission of fog preventing residual build up and clogging.
SPECIFICATIONS:
Maximum fog output: 100 m3 (3,531 ft3) per minute
Fluid consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
Gas type: CO2 or N2
Gas consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi
Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
Reservoir capacity: 2.5 L (0.66 US gallon)
